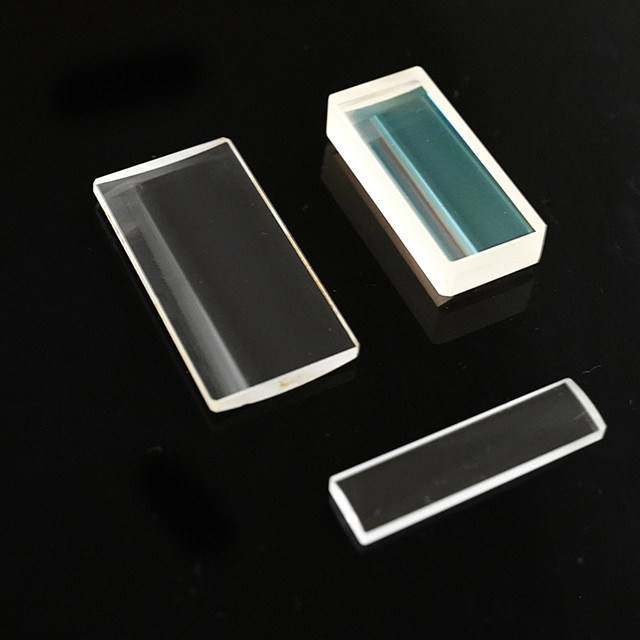

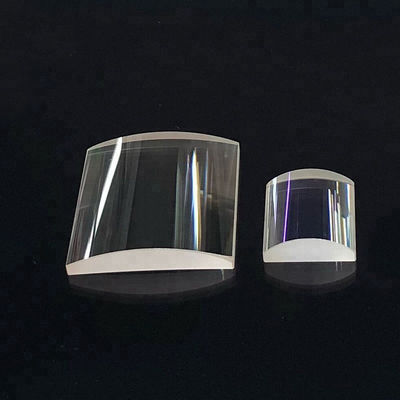

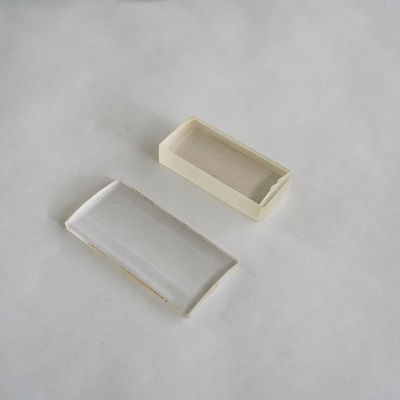

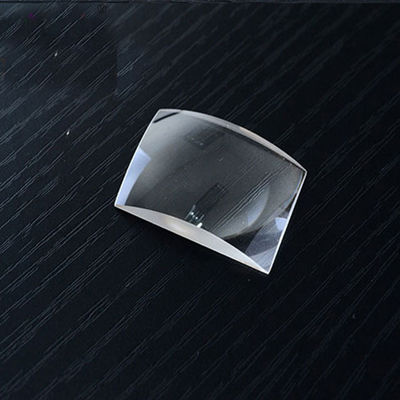

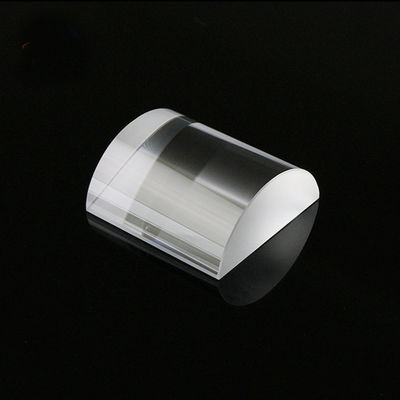

Plano Convex Cylindrical Infrared Laser Collimator Lens
Infrared Laser Collimator Lens
,Cylindrical laser collimator lens
,Plano Convex ar coated lens
The manufacturing process for a Plano Convex Cylindrical Infrared Laser Collimator Lens requires advanced CNC grinding and diamond turning to achieve the necessary surface accuracy. Because Infrared Laser systems are highly sensitive to thermal lensing and material absorption, the Plano Convex Cylindrical substrate must be chosen for its specific refractive index and low absorption coefficient.
As a professional Collimator Lens, these optics are typically treated with high-durability Anti-Reflective (AR) coatings tailored to specific IR bands (such as 3-5μm or 8-12μm). This ensures that the Plano Convex Cylindrical Infrared Laser output maintains maximum power efficiency. Whether used in an autonomous vehicle's LiDAR system or a high-end thermal weapon sight, the Collimator Lens provides the foundational beam stability required for accurate data acquisition and target illumination.
| Parameter | Specifications |
|---|---|
| Range of diameter | Dia.0.7mm-Dia.400mm |
| Range of curve radius | R1.5-R∞ etc |
| Tolerance of diameter | +/-0.1, +/-0.01, +/-0.005 etc. |
| Surface of diameter | λ, 1/2λ, 1/4λ, 1/10λ etc |
| Tolerance of Thickness | +/-0.1, +/-0.05, +/-0.01 etc |
| Centration | +/-2', +/-1' etc |
| Aperture N | 5, 1 etc |
| Irregularity ΔN | 2, 1, 0.5, 0.2 etc |
| Surface quality | 60/40, 40/20, 20/10, 10/5 etc |
- Thermal Imaging and Thermography: Using the Plano Convex Cylindrical lens to shape illumination for infrared cameras.
- LiDAR and Remote Sensing: Implementing the Collimator Lens in autonomous driving sensors to detect obstacles in low-visibility conditions.
- Industrial Gas Sensing: Utilizing the Infrared Laser for molecular spectroscopy where a Plano Convex Cylindrical beam path is required.
- Defense: Integrating the Collimator Lens into laser rangefinders and night vision target pointers.
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise, officially established in September 2009. The plant site is located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport.
The company gathers several excellent technicians in the optical industry and has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services. We wholeheartedly provide each customer with high-quality and convenient products and services.
- Optical mechanical and electrical module development
- Precision optical element processing
- Camera lens design and processing
- Optical design and optical path optimization solutions
- Technical consultation and after-sales service
Machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, equipment, laser etching, special lighting, scientific research institutions, etc.
- Comprehensive design, production and sales capabilities with one-stop convenient procurement services
- Tens of thousands of optical molds and samples for fast proofing services with low cost
- Early participation in customer's new product research and development to provide feasible plans and suggestions
-
